RF Venue 4 ZONE
4 Zone Antenna Combiner

OUR PART #  ZONE-4

Log In for price!

Don't have an account? Apply today!

Designed to combine multiple pairs of diversity antennas used for wireless microphone receivers, the RF Venue 4 ZONE takes the complexity out of multi-zone wireless microphone projects. Combines together up to 4 separate pairs of diversity antenna connections for multi-purpose rooms, indoor-outdoor configurations, or main stages with secondary breakout rooms. It features RF input ON/OFF, along with 0 dB to -31 dB input attenuation, DC power for in-line ampliers or active antennas, and individual input signal ON/OFF control. It allows fine tuning of RF levels in each coverage area by providing individual channel RF signal attenuation control down to -31dB in 1 dB steps. For active antennas or in-line amplifiers, it features selectable 12V DC power to accommodate long cable runs. It has selectable ON/OFF inputs, offering quick control of coverage zones for roaming microphone transmitters, letting you choose which zones are active as a live event or location sound project progresses, saving onsite setup and breakdown time. Additionally, when it's used together with up to 4 Diversity Fin Antennas and one or more DISTRO4 antenna distributors (antennas and distributors sold separately), 4 ZONE completes a turnkey package that can be used for any multi-zone wireless microphone project.

RF Venue 4 ZONE Includes:

  • (1) 4 ZONE unit
  • (1) AC Power Cable x1
  • (2) BNC to BNC coaxial cables

RF Venue 4 ZONE Specifications:

  • Manufacturer part#: 4ZONE
  • Carrier Frequency Range: 470 ~ 960 MHz
  • Full System Gain: 3 dB (±3dB)
  • Input/Output Impedance: 50
  • A/B Antenna Input: 4+4
  • OIP3: -35 dBm (typ.) @ 2-tone; Pi=-15 dBm/tone
  • RF Input Attenuation: -31 ~ 0 dB (Step:1dB)
  • Input/Output Connectors: BNC(F): Input x8 / Output x2
  • Functions:
         1. DC Power (for In-Line Amplier) ON/OFF Control
         2. RF Input Attenuation Control
         3. RF Input Signal ON/OFF Control
  • In-Line Amplier Power: 12V/200mA*8
  • Power Supply: 100~240VAC; MAX 2A 50/60Hz
  • Dimensions (W x H x D): approx. 19" x 1.8" x 10.3" (480 x 45 x 260mm)

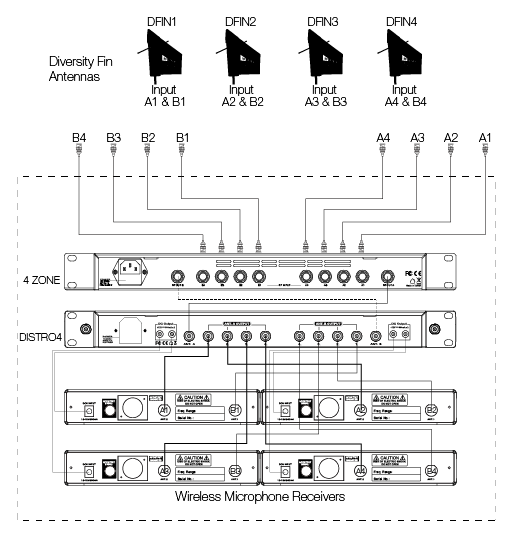

  • Typical application diagram (NOTE: Antennas, DISTRO4, and Wireless Microphone Receivers all sold separately):

RF Venue 4 ZONE
4 Zone Antenna Combiner

OUR PART #  ZONE-4

Product Information:

Designed to combine multiple pairs of diversity antennas used for wireless microphone receivers, the RF Venue 4 ZONE takes the complexity out of multi-zone wireless microphone projects. Combines together up to 4 separate pairs of diversity antenna connections for multi-purpose rooms, indoor-outdoor configurations, or main stages with secondary breakout rooms. It features RF input ON/OFF, along with 0 dB to -31 dB input attenuation, DC power for in-line ampliers or active antennas, and individual input signal ON/OFF control. It allows fine tuning of RF levels in each coverage area by providing individual channel RF signal attenuation control down to -31dB in 1 dB steps. For active antennas or in-line amplifiers, it features selectable 12V DC power to accommodate long cable runs. It has selectable ON/OFF inputs, offering quick control of coverage zones for roaming microphone transmitters, letting you choose which zones are active as a live event or location sound project progresses, saving onsite setup and breakdown time. Additionally, when it's used together with up to 4 Diversity Fin Antennas and one or more DISTRO4 antenna distributors (antennas and distributors sold separately), 4 ZONE completes a turnkey package that can be used for any multi-zone wireless microphone project.

RF Venue 4 ZONE Includes:

  • (1) 4 ZONE unit
  • (1) AC Power Cable x1
  • (2) BNC to BNC coaxial cables

RF Venue 4 ZONE Specifications:

  • Manufacturer part#: 4ZONE
  • Carrier Frequency Range: 470 ~ 960 MHz
  • Full System Gain: 3 dB (±3dB)
  • Input/Output Impedance: 50
  • A/B Antenna Input: 4+4
  • OIP3: -35 dBm (typ.) @ 2-tone; Pi=-15 dBm/tone
  • RF Input Attenuation: -31 ~ 0 dB (Step:1dB)
  • Input/Output Connectors: BNC(F): Input x8 / Output x2
  • Functions:
         1. DC Power (for In-Line Amplier) ON/OFF Control
         2. RF Input Attenuation Control
         3. RF Input Signal ON/OFF Control
  • In-Line Amplier Power: 12V/200mA*8
  • Power Supply: 100~240VAC; MAX 2A 50/60Hz
  • Dimensions (W x H x D): approx. 19" x 1.8" x 10.3" (480 x 45 x 260mm)
  • Typical application diagram (NOTE: Antennas, DISTRO4, and Wireless Microphone Receivers all sold separately):
